What Size Fuse for 12V? Free Calculator + Wire Gauge Chart

Size your fuse at 125% of the device's maximum current draw, but never exceed 80% of the wire's ampacity. Place fuses within 7 inches (18 cm) of the battery positive terminal. Use ANL fuses for main battery protection (100-300A), MIDI for distribution (30-100A), and blade fuses for individual circuits (1-30A).

Example: A 12V circuit drawing 10A needs a 15A fuse. The wire must be rated for at least 19A (15A / 0.80). If you use 12 AWG wire (rated 20-25A), a 15A fuse protects both device and wire correctly.

Skip the math: our free wire and fuse calculator gives you the exact fuse rating, fuse type, wire gauge, and placement distance for any 12V/24V/48V circuit. Enter voltage, current, and cable length, and you have the answer in seconds.

That is the core of fuse sizing. The fuse protects the wire, not the device. Every sizing decision follows from this single principle. Here is how to apply it to real circuits in your camper, boat, or off-grid build.

12V Fuse Size Chart by Wire Gauge

Pick the wire gauge from the chart, then choose a fuse at or below the value in the Max 12V Fuse column. The fuse rating is the next standard size below the wire's safe ampacity, applying the 80% derate that keeps wires cool under continuous load.

Wire Gauge	mm² (approx.)	Safe Ampacity	Max 12V Fuse	Typical 12V Use
18 AWG	0.8 mm²	10 A	7.5 A	Sensors, low-current electronics
16 AWG	1.3 mm²	15 A	10 A	LED lighting, USB outlets
14 AWG	2.1 mm²	20 A	15 A	Cabin lights, fans, small loads
12 AWG	3.3 mm²	25 A	20 A	12V outlets, small fridges
10 AWG	5.3 mm²	30 A	25 A	Water pumps, bilge pumps
8 AWG	8.4 mm²	45 A	40 A	Distribution panel feeds
6 AWG	13.3 mm²	60 A	50 A	DC-DC chargers, MPPT feeds
4 AWG	21.2 mm²	95 A	80 A	1000 W inverters
2 AWG	33.6 mm²	120 A	100 A	1500–2000 W inverters
1/0 AWG	53.5 mm²	150 A	125 A	2000–3000 W inverters
2/0 AWG	67.4 mm²	175 A	150 A	Large inverters, busbar feeds
4/0 AWG	107 mm²	250 A	200 A	Main battery bank to busbar

These ampacities assume bundled wiring in typical RV, boat, or off-grid installations (105°C-rated insulation, ABYC E-11 derated for engine-space heat and bundling). Single-conductor free-air runs in cool spaces tolerate roughly 30% more current — but if you want one rule that always holds, size for the worst case. For metric-only sizing, see our AWG to mm² wire gauge guide.

Lithium rule of thumb: LiFePO4 batteries dump enormous current into a short — far more than lead-acid. The practical bar most builders settle on: at least 5,000 A of fuse interrupt rating (AIC) for every 100 Ah of LiFePO4 capacity at 12V. A 200 Ah bank wants a fuse rated for 10,000 A AIC, which rules out cheap automotive fuses and points you at MRBF or Class T. See Class T vs MRBF compared for the picker.

The Basic Rule That Governs Everything

Your fuse protects the wire, not the device.

Read that again. The fuse doesn't care about your LED lights or your chartplotter. It cares about preventing the wire from becoming a heating element.

This single principle drives every decision about fuse sizing and placement.

How to Size a Fuse: Step-by-Step

Three numbers matter:

1. Device current draw (what it actually uses)
2. Wire ampacity (what the wire can safely handle)
3. Fuse rating (your sweet spot between them)

The formula is embarrassingly simple:

• Fuse rating must be higher than device current
• Fuse rating must be lower than wire ampacity

Example: A bilge pump draws 8 amps. You wire it with 12 AWG wire (rated for 20-25 amps). Your fuse should be 10-15 amps.

Too small (like 5A)? The pump won't run properly. Too large (like 30A)? The wire could overheat before the fuse blows.

Not sure which wire gauge and fuse to pair? Our wire gauge calculator figures out the correct wire size, voltage drop, and matching fuse for any 12V/24V/48V circuit.

The 125% Rule (And When to Ignore It)

Standard practice says to size your fuse at 125% of the continuous load. That 8-amp bilge pump? 8A × 1.25 = 10A fuse.

But here's where experience matters:

• Motors and pumps: Go higher (150-200%) to handle startup surge
• Electronics: Stick to 110-125% – they don't surge
• Inverters: Check the manual – they're special snowflakes

Where to Place Your Fuses

Location matters as much as size. The rules:

At the battery: Every positive cable leaving the battery gets a fuse within 7 inches. No exceptions. This is your main line of defense.

At distribution points: Each circuit branching off needs protection sized for that specific wire.

Not needed:

• Negative wires (they're already grounded)
• Wires under 7 inches total length
• Engine starting circuits (use the engine's protection)

Fuse Types: Picking Your Fighter

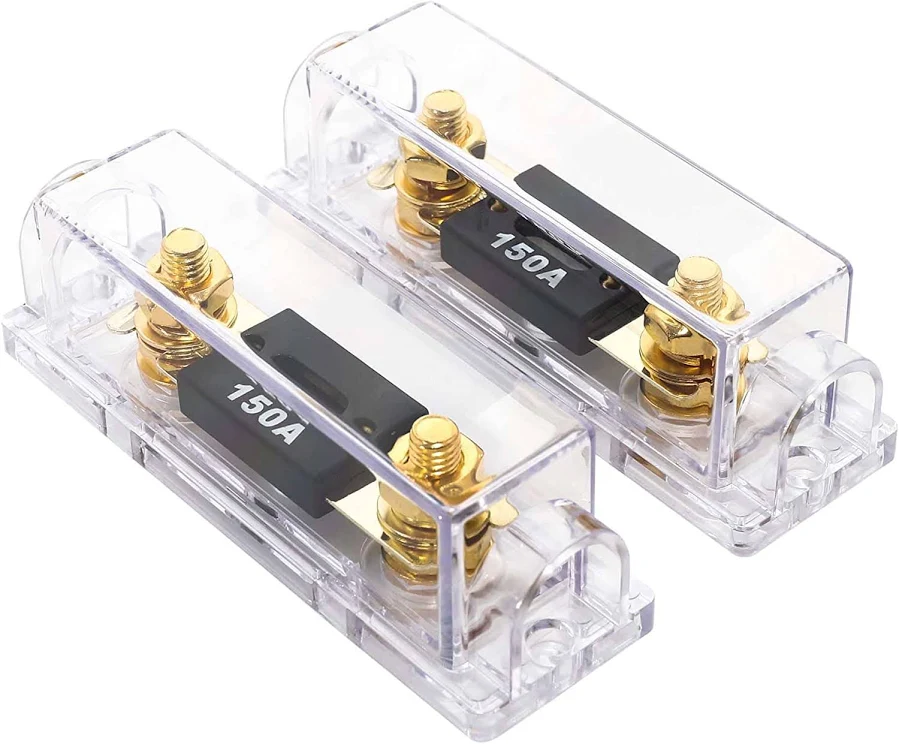

ANL Fuses (20-500A)

• Best for: Main battery protection, inverter feeds
• Pros: Compact, high interrupting capacity
• Cons: Need a separate holder

MIDI/AMI Fuses (30-200A)

• Best for: Medium circuits, multiple battery banks
• Pros: Bolt-in design, easy to inspect
• Cons: Larger footprint than needed for small circuits

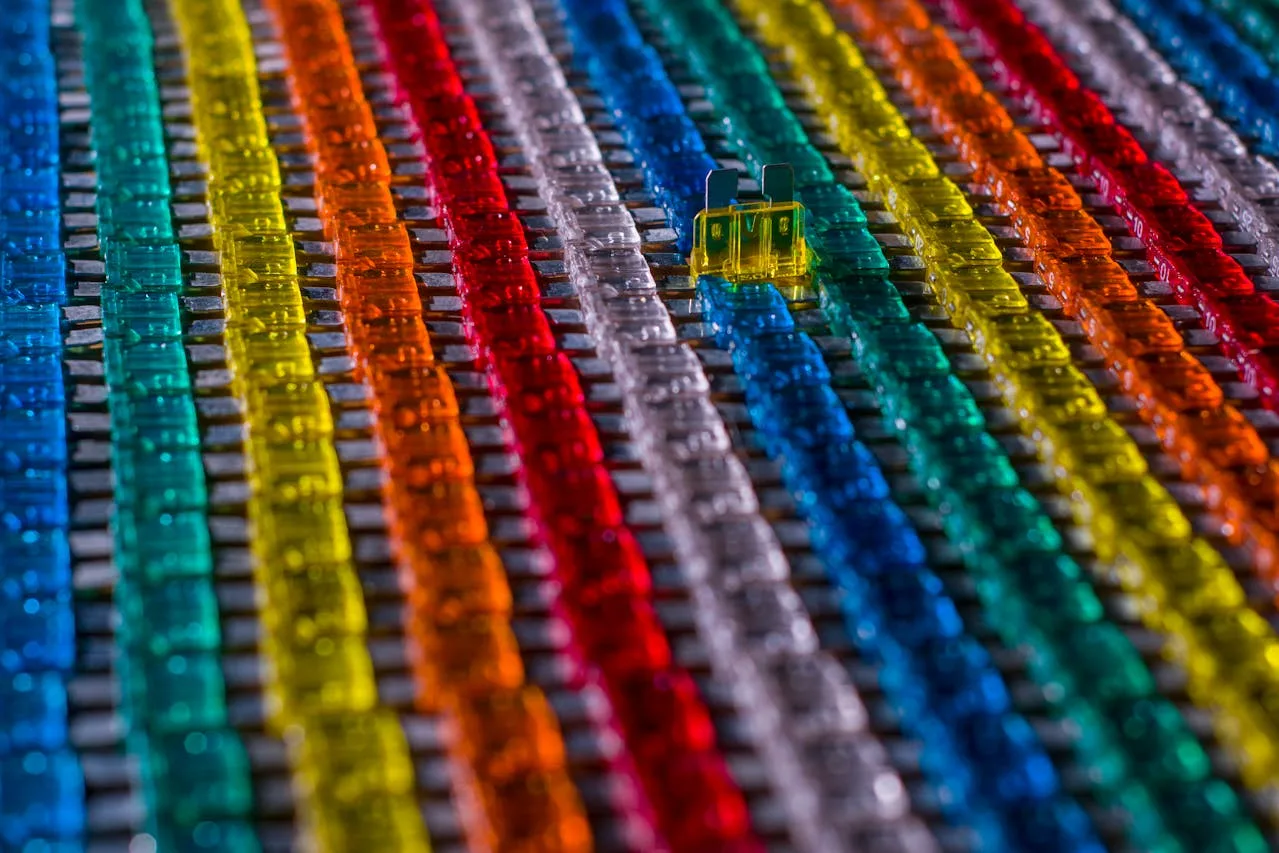

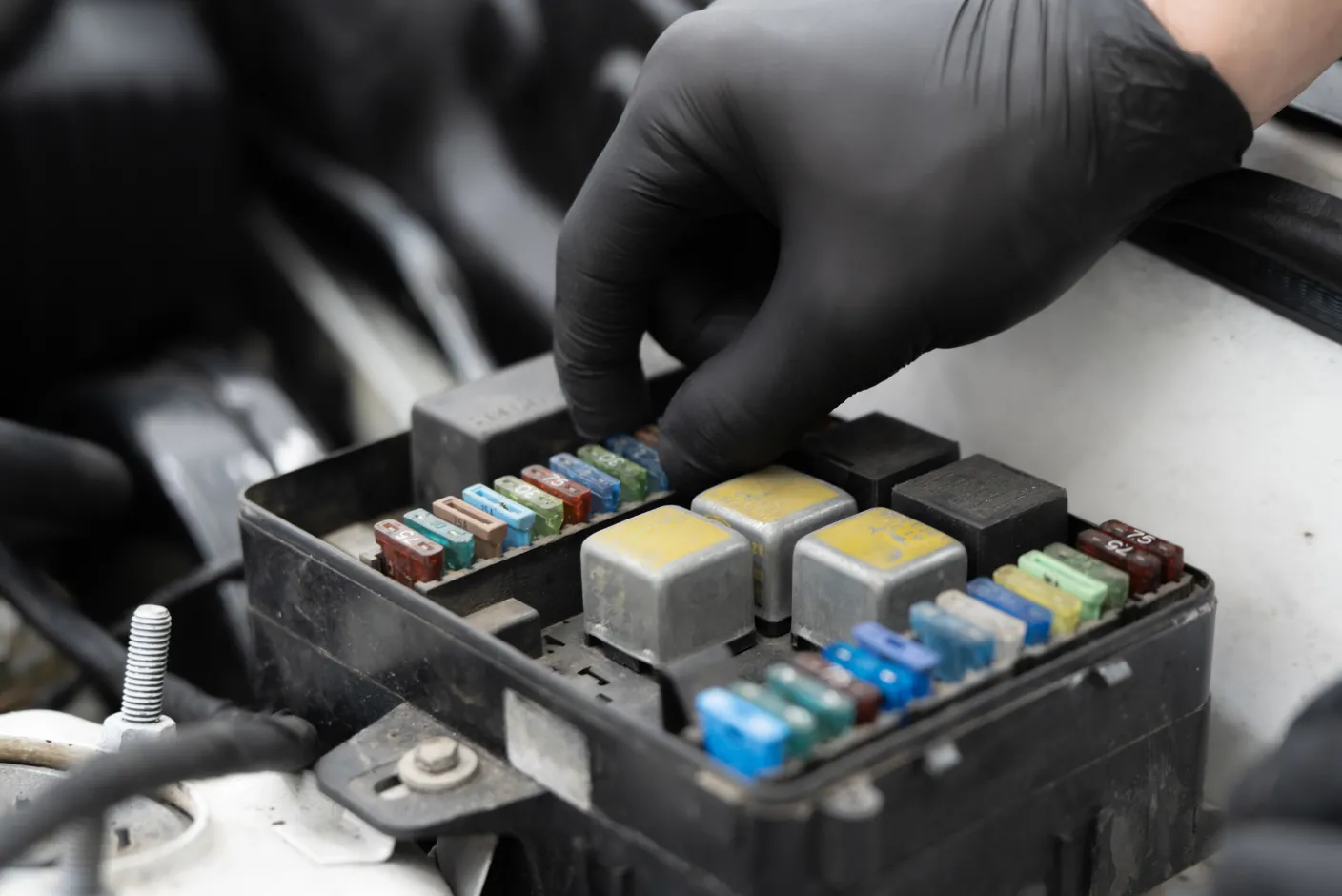

Blade/ATC/ATO Fuses (1-40A)

• Best for: Branch circuits, electronics, lights
• Pros: Cheap, available everywhere
• Cons: Lower interrupting capacity

Glass Tube Fuses (0.5-30A)

• Best for: Electronics, low-current circuits
• Pros: Precise ratings available
• Cons: Fragile, need holders

AIC Rating: The Second Number That Matters

Most sizing guides stop at amps. They are wrong to. Every fuse has a second rating that matters just as much: Amps Interrupting Capacity (AIC) — the maximum short-circuit current the fuse can actually break without arcing or welding shut.

Here's how to think about it: what happens if your positive cable shorts directly to ground? The current spike could be thousands of amps for a split second. A proper main-battery fuse interrupts that flow cleanly. A cheap automotive fuse might just arc and keep conducting until something melts.

For lithium (LiFePO4) banks the AIC question is no longer optional. A single 100 Ah LiFePO4 cell can dump well over 5,000 A into a dead short. A bank of four in parallel can hit 20,000 A. That is exactly the territory ABYC E-11 (2026) now regulates. The two devices that meet the bar:

Fuse type	AIC rating	Typical max amps	Mounting	Cost (with holder)
Class T	20,000 A @ 125 V DC	up to 1,200 A	Separate holder	~$80–$120
MRBF (terminal fuse)	10,000 A @ 14 V DC	up to 300 A	Bolts onto battery post	~$15–$25
ANL	2,700–6,000 A	up to 750 A	Separate holder	~$10–$30
MEGA	2,000 A	up to 500 A	Separate holder	~$10–$25
Blade (ATC/ATO)	~1,000 A	up to 40 A	Inline / fuse box	~$1

For a single small LiFePO4 (≤100 Ah) at 12V, MRBF on the terminal is usually enough. For paralleled banks, 24V/48V systems, or anything marine-rated, Class T is the gold standard. Full breakdown in Class T vs MRBF for LiFePO4 (2026).

For branch circuits downstream of a main fuse, 1,500 AIC blade fuses are still fine — the main fuse takes the catastrophic short, the branch fuse handles routine overload.

Real-World Fusing Strategies

The Main Fuse Philosophy One big fuse at the battery (sized for your main feed wire), then a distribution block with smaller fuses for each circuit. Clean, simple, effective.

The Individual Circuit Approach Skip the main fuse, put individual fuses on each circuit right at the battery. More fuses, but easier troubleshooting.

The Hybrid Method Main fuse for high-current devices (inverter, windlass), individual fuses for everything else. Best of both worlds.

Common Fusing Mistakes That Bite

The "Bigger is Safer" Myth: A 100A fuse on 14 AWG wire isn't protection – it's denial.

Forgetting Voltage Drop: Long wire runs need larger wire for voltage drop, but the fuse still protects based on ampacity. Don't confuse the two.

Mixing Fuse Types: That 30A glass fuse might fit in your blade fuse holder, but it won't work properly. Match fuse to holder, always.

Ignoring Temperature: Fuses in hot engine rooms need derating. That 30A fuse might blow at 25A when it's 50°C ambient.

The Solar Exception

Solar panels are weird. They're current-limited by physics, so the fuse sizing rules change:

• Size for 125% of short-circuit current (Isc)
• Place between panel and controller
• Use DC-rated fuses (AC fuses will arc)

Fuse Selection Guide: Sizes by Device & Use Case

Navigation lights: 5-10A (usually 10 AWG wire) VHF radio: 10A (even though it draws 5A max) Chartplotter: 3-5A (check the manual) Cabin lights: 10-15A per circuit Bilge pump: 150% of rated current Inverter: Check manual (usually massive) USB outlets: 10-15A per bank Windlass: Often unfused (uses breaker instead)

The Digital Age Problem

Modern electronics create new challenges. That LED light draws 0.5A, but do you really want to hunt for 1A fuses?

The practical solution: standardize on common sizes. Use 5A minimum for any electronic circuit. Yes, it's oversized for the device. But it's still protecting the wire, and 5A fuses are available everywhere.

Planning Your Protection

Before buying a single fuse, map out your system. Run every circuit through the wire and fuse calculator first -- it sizes the wire, picks the matching fuse, tells you which fuse type to buy (ANL, MIDI, or blade), and reminds you of the 18 cm placement rule. Better to figure this out on screen than after you've run all your wires.

Quick Reference: Printable Cheat Sheet

Need the fuse sizes for 20+ common devices on a single page? Download our free 12V fuse sizing cheat sheet with correct fuse ratings, wire gauges, fuse types, and placement rules. Print it and pin it above your workbench.

The Bottom Line

Fuses are cheap insurance. Size them properly:

• Higher than device current (with appropriate margin)
• Lower than wire ampacity (always)
• Placed at the power source (within 7 inches for batteries)

When in doubt, protect the wire. The device can have its own internal protection, but melted wiring means ripping apart your entire installation.

A properly fused system isn't just safe – it's easier to troubleshoot. When something stops working, you check the fuse first. If it's blown, you know exactly which circuit has a problem.

That's not overthinking. That's just smart.

Frequently Asked Questions

What size fuse do I need for a 12V circuit?

Multiply your device's maximum current draw by 1.25 and round to the nearest standard fuse size. For example, a device drawing 8A needs a 10A fuse. Always verify that the fuse rating stays below your wire's ampacity rating.

Where should fuses be placed in a 12V system?

Place fuses within 7 inches (18 cm) of the battery positive terminal. This protects the entire wire run from a short circuit, not just the device at the end. For branch circuits off a distribution panel, fuse at the panel.

What is the difference between ANL, MIDI, and blade fuses?

ANL fuses handle 100-300A and protect main battery feeds. MIDI fuses cover 30-100A for mid-range circuits like inverters and DC-DC chargers. Standard blade fuses (ATO/ATC) protect individual circuits at 1-30A. Always match the fuse type to its rated holder.

Can I use a bigger fuse if it keeps blowing?

No. A repeatedly blowing fuse indicates an overloaded or shorted circuit. Installing a larger fuse removes the protection and risks overheating the wire, which can cause a fire. Find and fix the underlying problem instead.

Do solar panels need fuses?

Yes. Size solar fuses at 125% of the panel's short-circuit current (Isc), not its operating current. Place the fuse between the panels and the charge controller. Use DC-rated fuses only -- AC fuses will arc under DC loads.

Does my LiFePO4 battery's built-in BMS replace a Class T fuse?

Usually no. A FET-based BMS handles cell balancing, overcurrent on charge/discharge, and low-voltage cutoff — but it is not certified to interrupt a 5,000+ A dead short, and FETs can fail closed under that load. Some premium LiFePO4 batteries now include certified internal breakers; many do not. See Does your LiFePO4 BMS replace a Class T fuse? for a decision tree.

What is the difference between Class T and MRBF fuses?

Class T fuses interrupt up to 20,000 A and are the LiFePO4 gold standard but cost ~$80–$120 with a holder. MRBF (Marine Rated Battery Fuse) terminal fuses interrupt 10,000 A, bolt straight onto the battery post, and run ~$15–$25. MRBF is fine for small single-battery systems; Class T is required for paralleled banks, 24V/48V, and ABYC marine work. Full comparison in Class T vs MRBF for LiFePO4 (2026).
