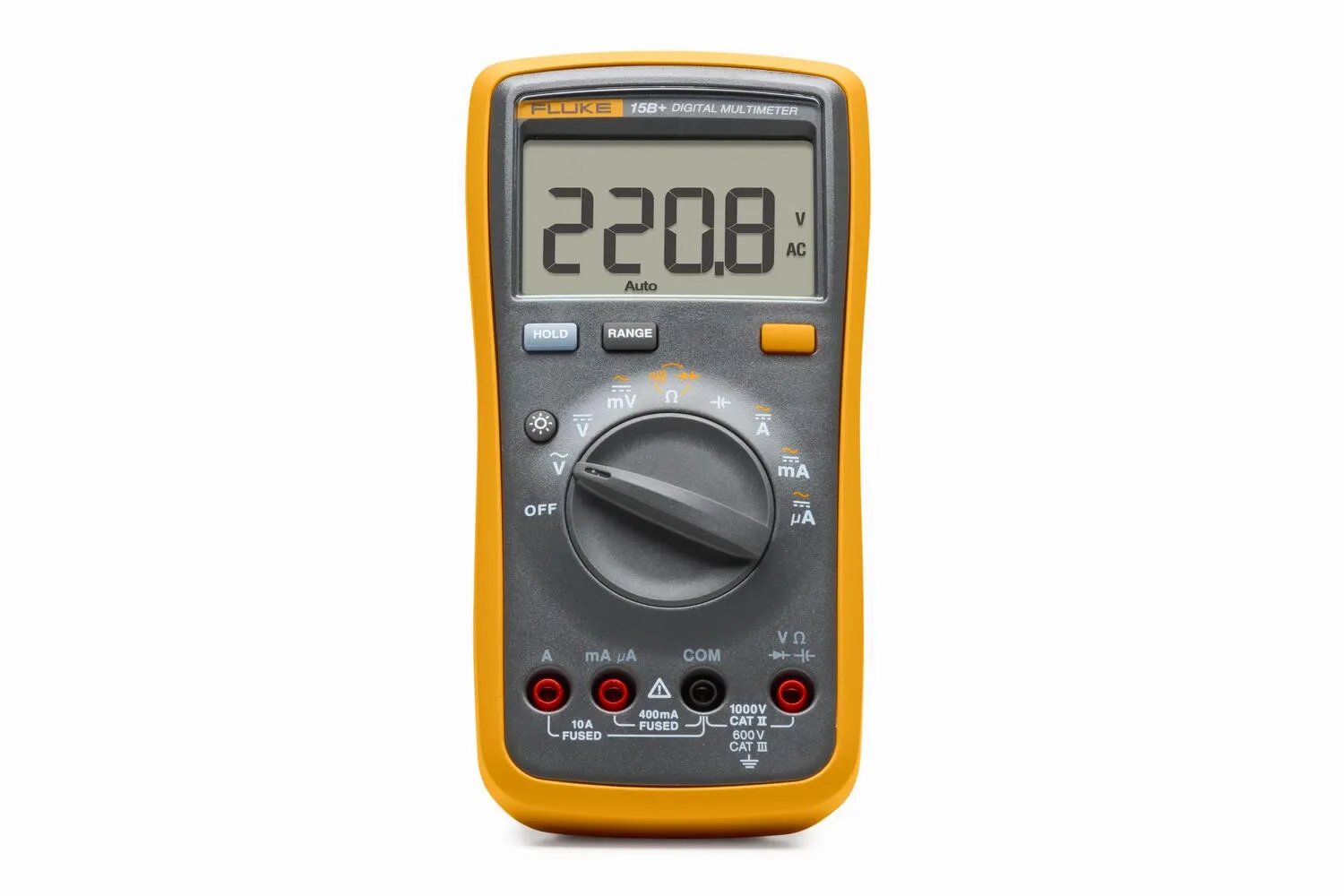

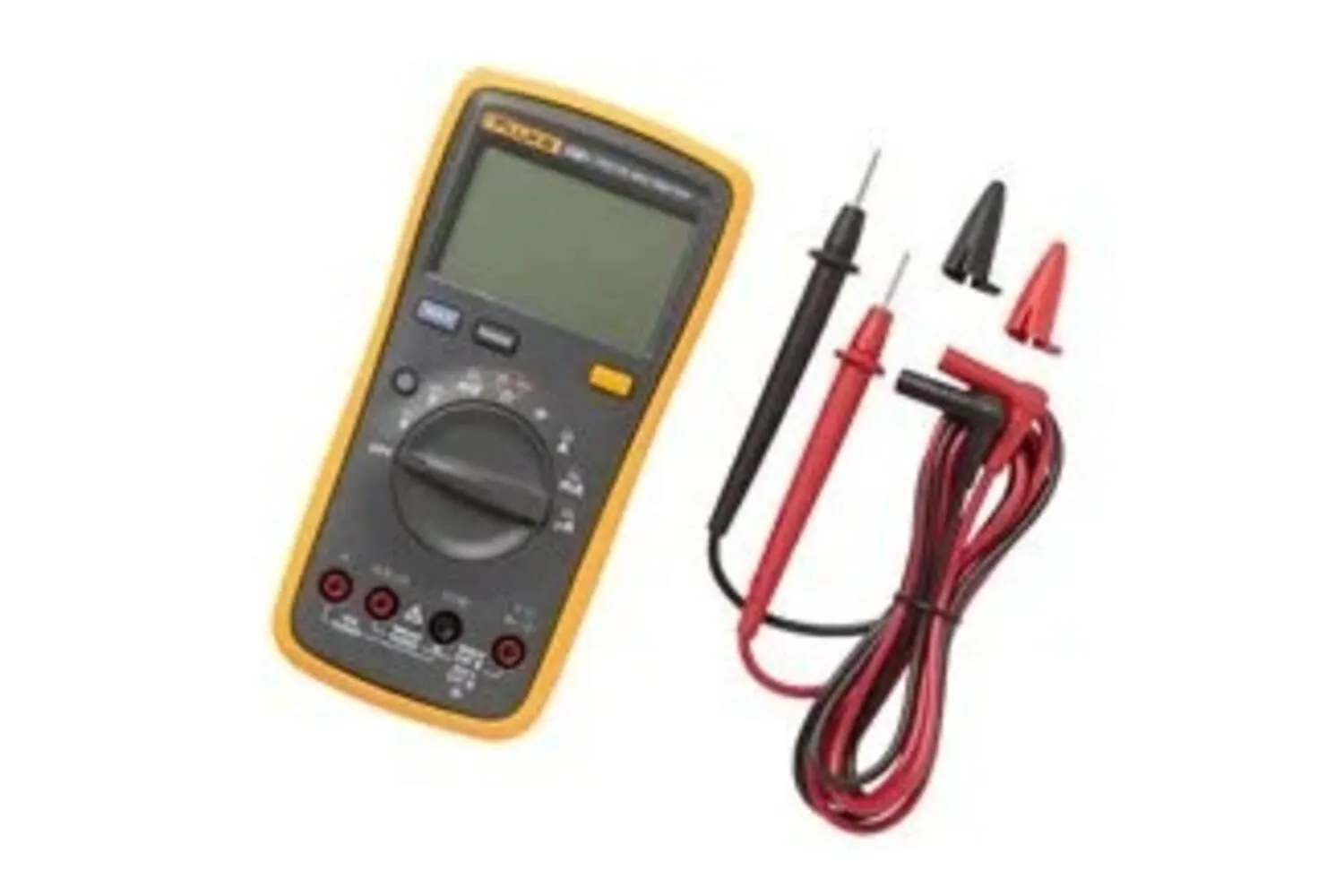

15B+ Digital Multimeter
The Fluke 15B+ is a digital multimeter with a CAT III 600 V safety rating. It features a 4000-count LCD display with a white backlight, and can measure AC/DC voltage up to 1000V, AC/DC current up to 10A, resistance, continuity, and capacitance.
Buy — affiliate linkAdd to my wiring diagram
We earn a small commission on purchases through this link. It does not change what you pay and never affects ratings.
!
Safety notes for this component
- Ensure the multimeter's CAT III 600 V rating is not exceeded when measuring circuits.
- Use appropriate fuses for current measurements to protect the multimeter and system.
- Verify that the operating temperature range of 0°C to 40°C is suitable for the installation environment.
Technical data
Safety ratingCAT III 600 V
Maximum voltage between any terminal and earth ground1000 V
Display (LCD)4000 counts, updates 3/sec
Battery type2 AA, NEDA 15 A, IEC LR6
Battery life500 hours minimum
Temperature Operating0 °C to 40 °C
Temperature Storage-30 °C to 60 °C
Relative humidity Operating≤ 90 % RH at 10 °C to 30 °C; ≤ 75 % RH at 30 °C to 40 °C; non-condensing (<10 °C)
Altitude Operating2000 m
Size (HxWxL)183 mm x 91 mm x 49.5 mm
Weight455 g
IP RatingIP40
Fuse protection for 10A current input11 A, 1000 V Fast Fuse
Fuse protection for mA current input440 mA, 1000 V Fast Fuse
