Component catalogue
Batteries, chargers, inverters and the rest of the 12 V hardware VoltPlan knows how to wire up. Every entry carries real specs, so you can compare parts before one goes into your diagram.
21 components

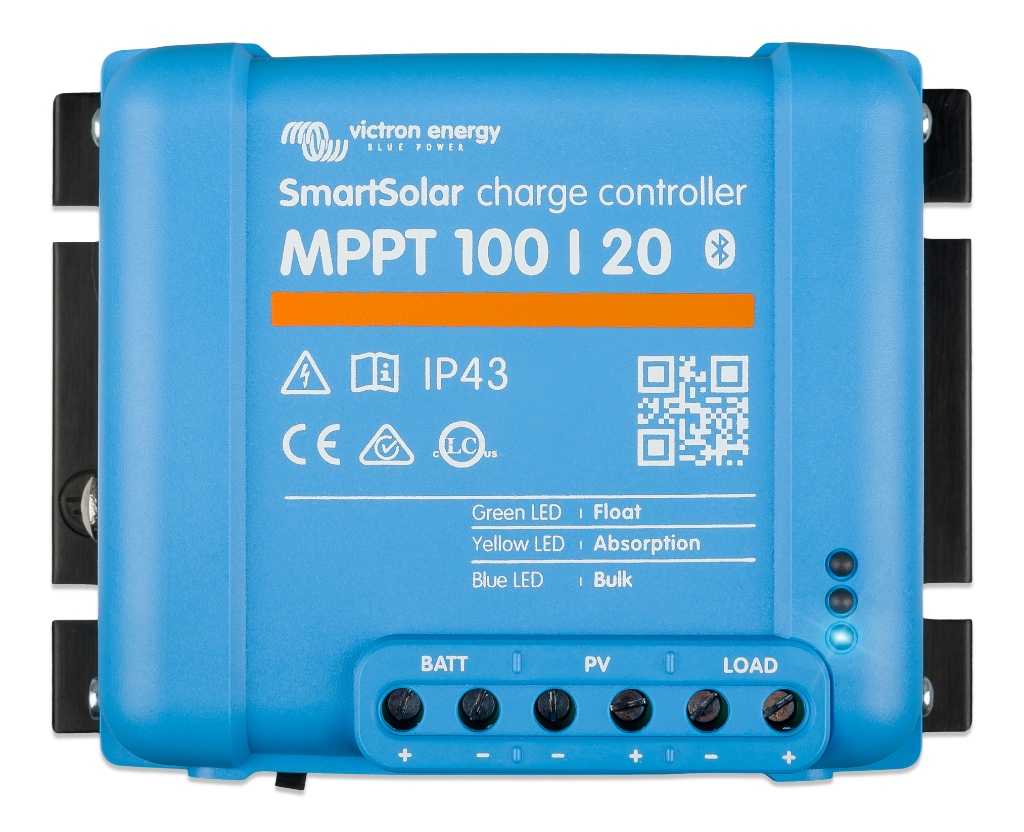

VictronSmartSolar MPPT 100/2020 A MPPT charge controller for 12 V and 24 V banks with 100 V PV input. The smaller sibling of the 100/30 — same Bluetooth app and charge profiles, sized for roofs up to 290 W at 12 V.
★★★★★(1)

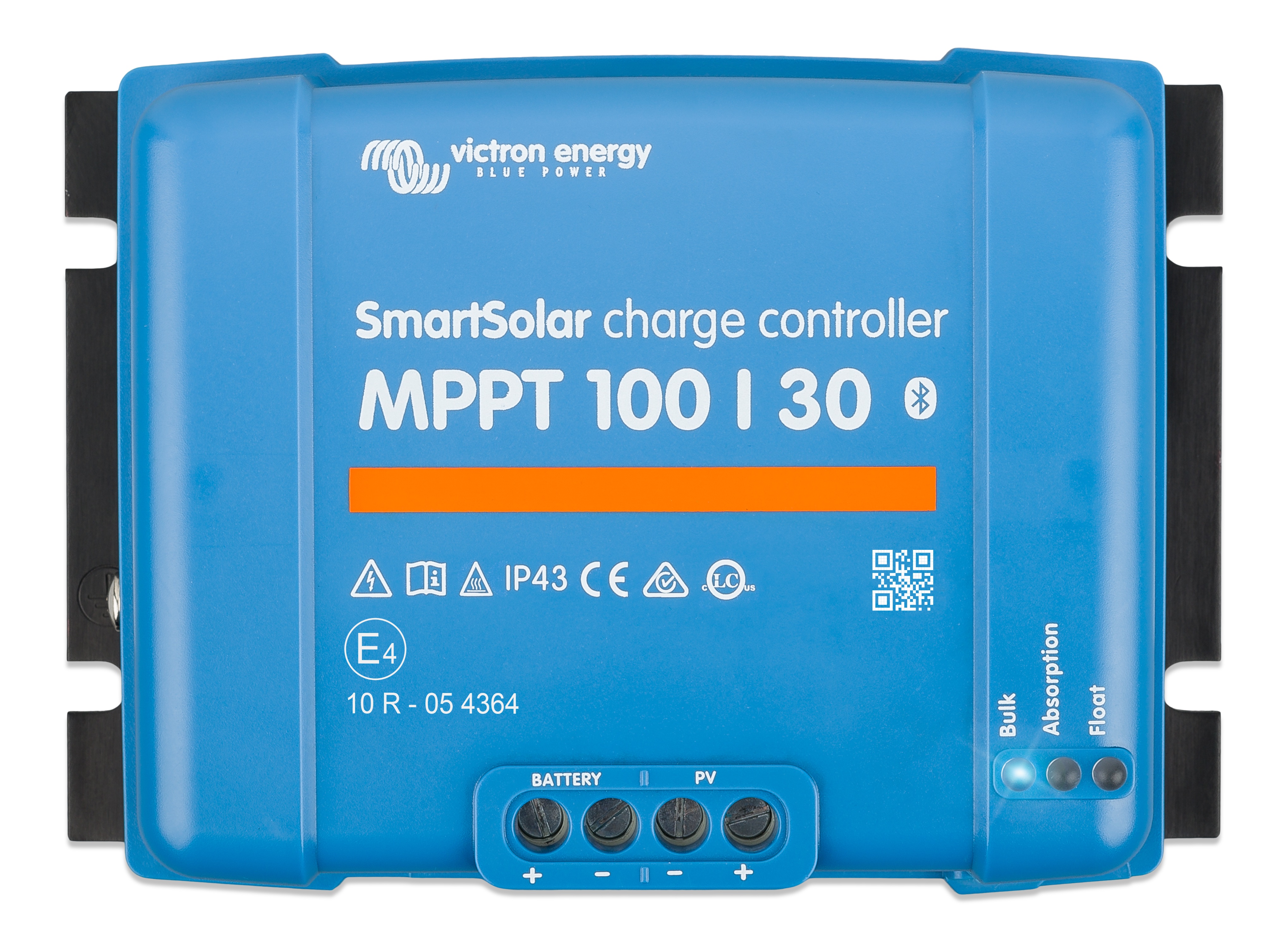

VictronSmartSolar MPPT 100/3030 A MPPT charge controller for 12 V and 24 V battery banks with up to 100 V PV input. Bluetooth monitoring, selectable lithium and lead-acid charge profiles, and peak efficiency above 98 %.
★★★★★(1)

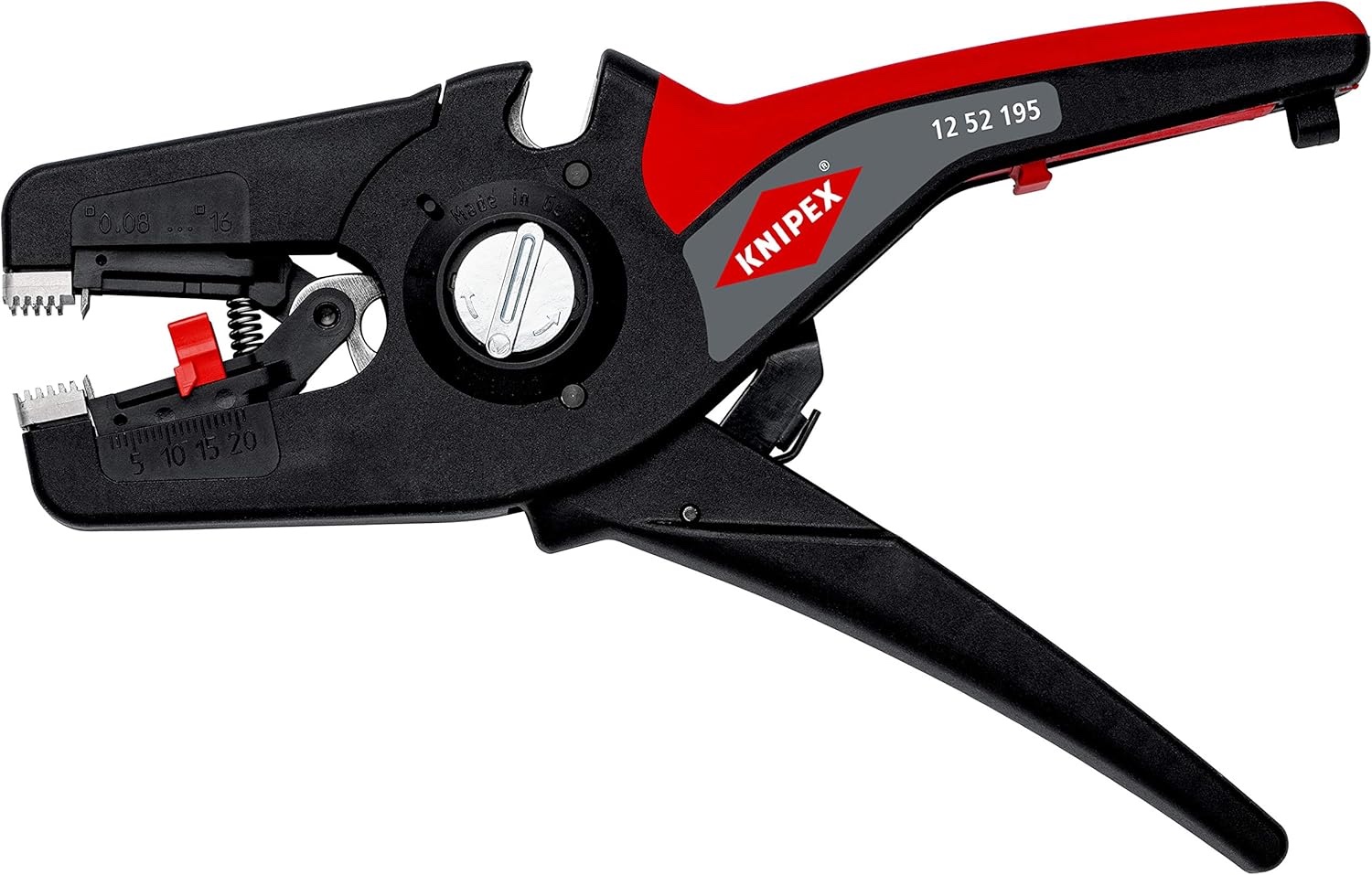

KnipexPreciStrip16 Automatic Wire Stripper 0.08-16mm²The Knipex PreciStrip16 (12 52 195) is an automatic wire stripper designed for precise stripping of fine wires and solid round cables. It has a wide capacity range from 0.08 to 16 mm² (28-6 AWG) and features a patented mechanism to regulate cut depth.
★★★★★(1)

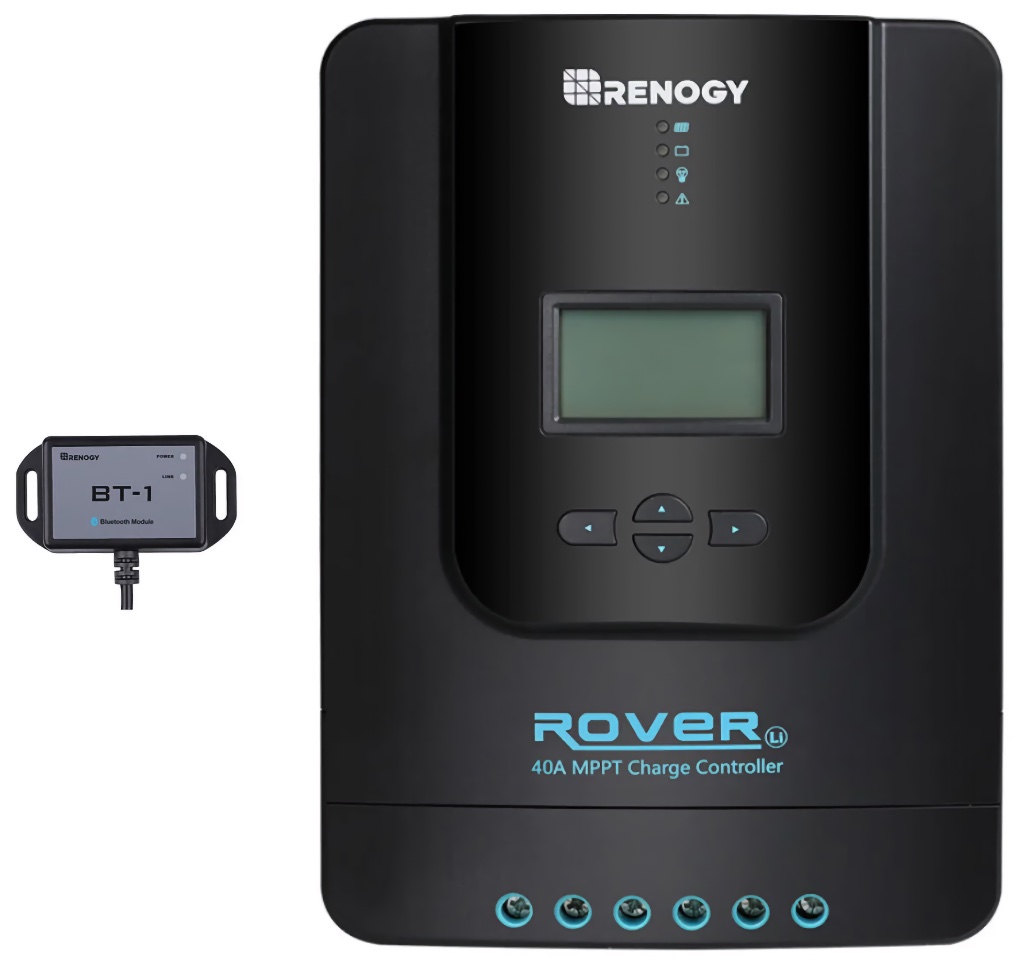

RenogyRenogy Rover 40A MPPT Charge ControllerThe Renogy Rover 40A MPPT Solar Charge Controller is designed for 12V/24V systems. It features MPPT (Maximum Power Point Tracking) technology to optimize solar energy harvesting. The controller has a rated charge current of 40A and a maximum solar input power of 520W for 12V systems and 1040W for 24V systems.
★★★★★(1)

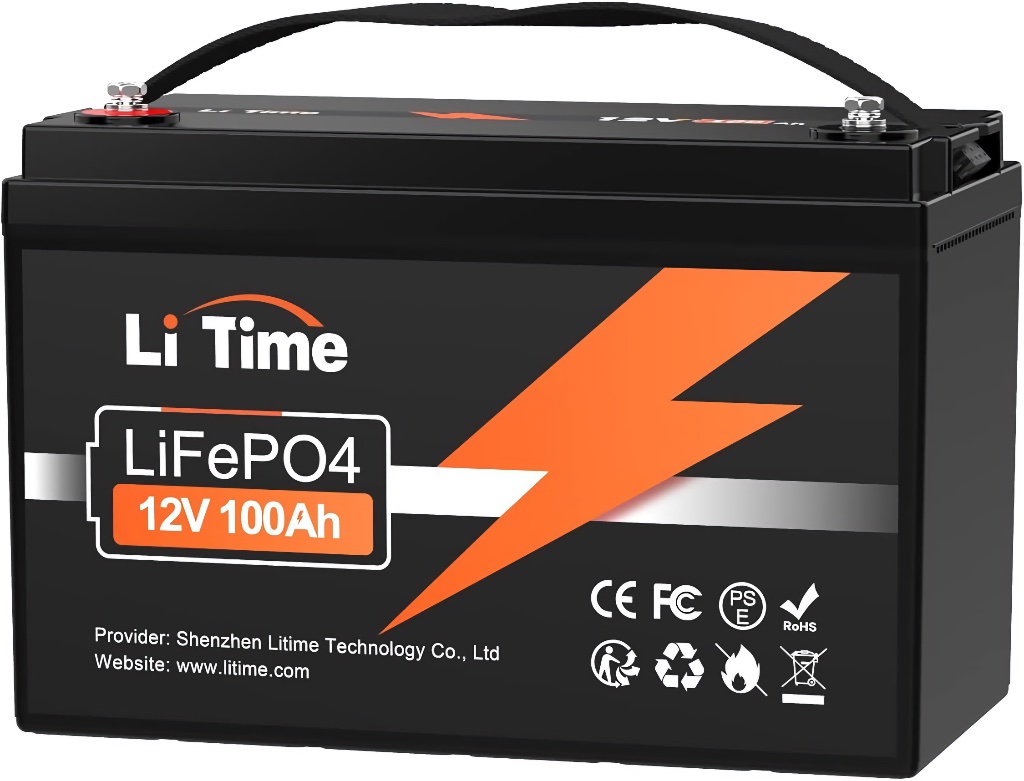

GenericLiFePO4 Battery 100Ah100 Ah LiFePO4 house battery for 12 V systems. Roughly 1280 Wh nominal, usable to a far deeper depth of discharge than lead-acid, at about a third of the weight.
★★★★☆(1)

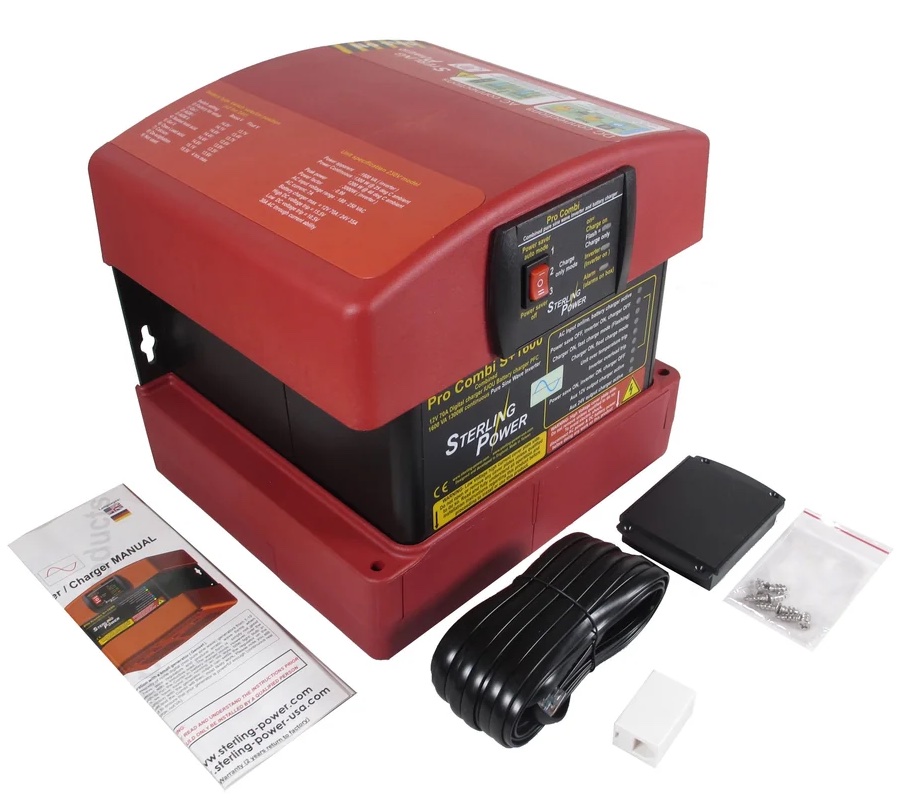

Sterling PowerSterling Power Pro Combi S+ 12/1600The Sterling Power Pro Combi S+ 12/1600 is a 1600W pure sine wave inverter/charger. It operates on a 12V DC input and provides a 230V AC output. The unit features a built-in battery charger and AC transfer switch.
★★★★☆(1)
RenogyPure Sine Wave Inverter 3000WThe Renogy 3000W Pure Sine Wave Inverter converts 12V DC power to 120V AC power. It is designed for off-grid systems in vehicles and remote locations, capable of powering household appliances.
RenogyPure Sine Wave Inverter 2000WThe Renogy 2000W Pure Sine Wave Inverter converts 12V DC power from batteries into 120V AC power for appliances. It offers a continuous output power of 2000W and a surge rating of 4000W. This inverter is designed for off-grid systems in vehicles, cabins, or remote locations.
RenogyPure Sine Wave Inverter 1000WThe Renogy 1000W Pure Sine Wave Inverter converts 12V DC power to 120V AC power. It offers a continuous output of 1000W with a surge capacity of 2000W, suitable for various off-grid applications.
ECTIVEInverter 12V to 230V 300W Pure Sine WaveThe ECTIVE SI 3 is a 300W inverter that converts 12V DC to 230V AC pure sine wave power. It is designed for sensitive electronics like laptops and televisions. This is a basic model in ECTIVE's inverter series, known for its robustness and reliability.
ECO-WORTHYLiFePO4 Battery 314AhThe ECO-WORTHY EnergyTrek 12V 314Ah is a lithium iron phosphate (LiFePO4) battery with a nominal capacity of 314Ah, providing 4019Wh of energy. It features Bluetooth monitoring, a 200A BMS with comprehensive protection, and is designed for all-season operation.
Green Cell12V to 230V Sine Wave Inverter 500W/1000WGreen Cell 12V to 230V Sine Wave Inverter with a continuous power of 500W and a peak power of 1000W. It converts 12V DC input to 230V AC output, suitable for various devices.
DATOUBOSSInverter 12V to 230V 2000W Pure Sine WaveThe DATOUBOSS 2000W Pure Sine Wave Inverter converts 12V DC to 230V AC with a rated power of 2000W and a peak power of 4000W. It features multiple EU sockets, USB ports, and a Type-C port for versatile power output.
ECTIVESSI252 Sine Wave Inverter Charger 1000W 12V-230V with MPPTThe ECTIVE SSI252 is a 1000W pure sine wave inverter with an integrated MPPT solar charge controller and battery charger. It operates on a 12V DC input and provides a 230V AC output.
ECO-WORTHYLiFePO4 Battery 300AhThe ECO-WORTHY LiFePO4 Battery 300Ah is a 12.8V battery with a rated power of 3840Wh. It features a 200A Battery Management System (BMS) for protection against high/low voltage, overload, and temperature variations, including low-temperature charging cut-off below -7°C.
OffgridtecUSB Socket Charger 12V/24V to 5V 2.4AThe Offgridtec USB Socket Charger is a 12W charger with a 12V input and 5V output. It provides a standard USB connection for charging devices in vehicles and off-grid systems.
Fluke15B+ Digital MultimeterThe Fluke 15B+ is a digital multimeter with a CAT III 600 V safety rating. It features a 4000-count LCD display with a white backlight, and can measure AC/DC voltage up to 1000V, AC/DC current up to 10A, resistance, continuity, and capacitance.
MastervoltCombiMaster 12V/2000VA Inverter-ChargerThe Mastervolt CombiMaster 12/2000-60 is a 12V inverter-charger with a 2000 VA true sine wave inverter and a 60A battery charger. It provides grid-quality AC power and can be integrated into MasterBus or CZone networks.
EPEVEREPEVER Tracer 4210AN G3 40A MPPT ControllerThe EPEVER Tracer 4210AN G3 is a 40A MPPT charge controller for 12V/24V systems, featuring a maximum PV input voltage of 100V and a rated charging power of 520W at 12V or 1040W at 24V. It offers up to 99.5% tracking efficiency and 98% conversion efficiency.
EcoFlowEcoFlow DELTA Pro 3The EcoFlow DELTA Pro 3 is a portable power station with a 4096Wh capacity and a 4000W rated output. It can surge up to 6000W and has a 230V output voltage.
AnkerAnker SOLIX C1000 Gen 2The Anker SOLIX C1000 Gen 2 is a portable power station with a 1024Wh capacity and a 2000W AC output. It can be recharged via AC input up to 1600W or by solar panels up to 600W.
