LiFePO4 Battery 100Ah
100 Ah LiFePO4 house battery for 12 V systems. Roughly 1280 Wh nominal, usable to a far deeper depth of discharge than lead-acid, at about a third of the weight.
★★★★☆4.01 rating
Buy — affiliate linkAdd to my wiring diagram
We earn a small commission on purchases through this link. It does not change what you pay and never affects ratings.
Power
1280 W
Input
12.8 V DC
Output
12.8 V DC
!
Safety notes for this component
- LiFePO4 needs a charge profile with no equalisation stage. Charging it on a lead-acid preset will over-volt the cells.
- Fuse the battery positive close to the terminal. A lithium bank can deliver a very high short-circuit current.
Technical data
Nominal capacity100 Ah
Nominal voltage12.8 V
Nominal energy1280 Wh
ChemistryLiFePO4

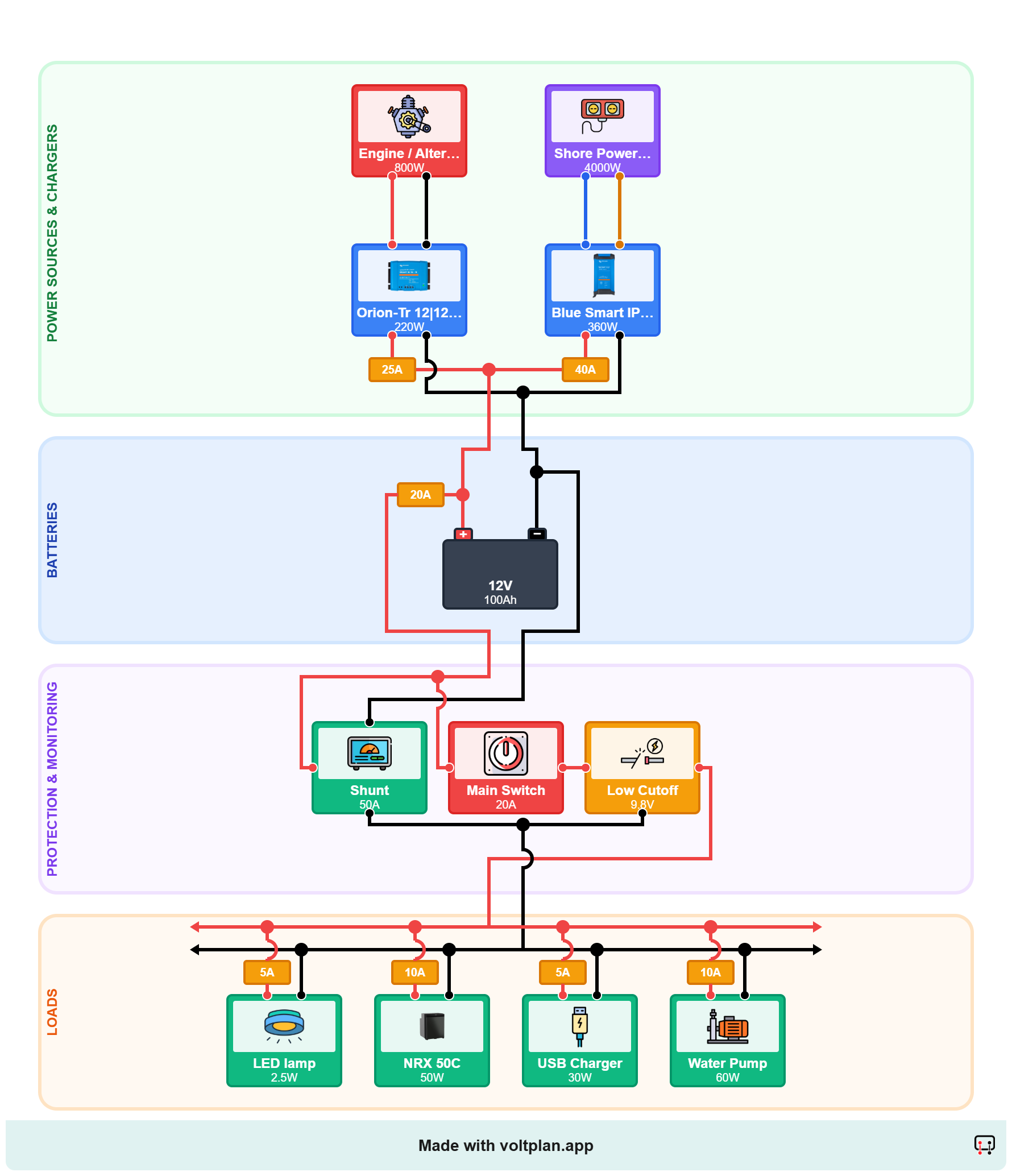

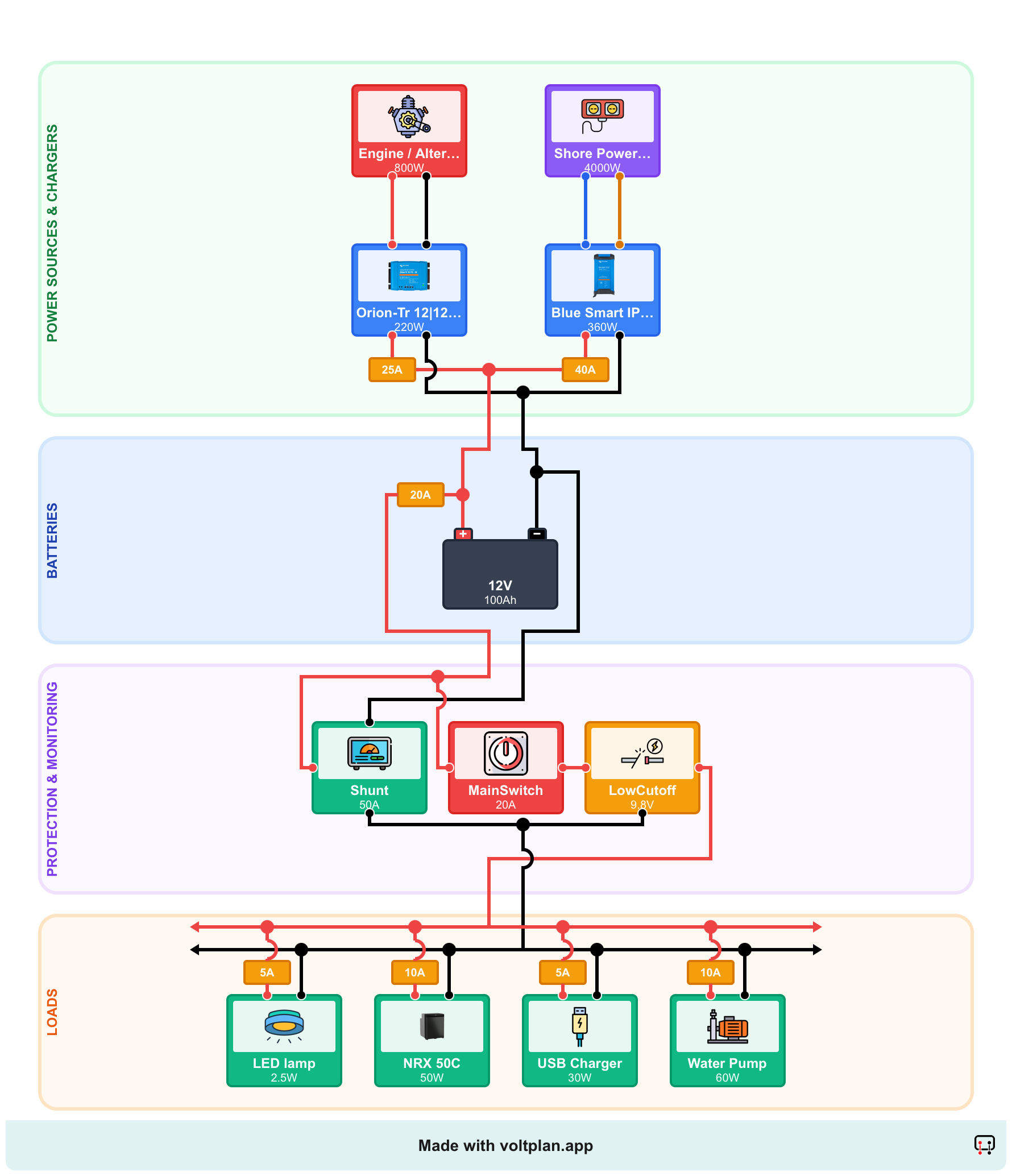

Diagrams using this component
