Anker SOLIX S5000In library
Anker

Anker SOLIX S5000

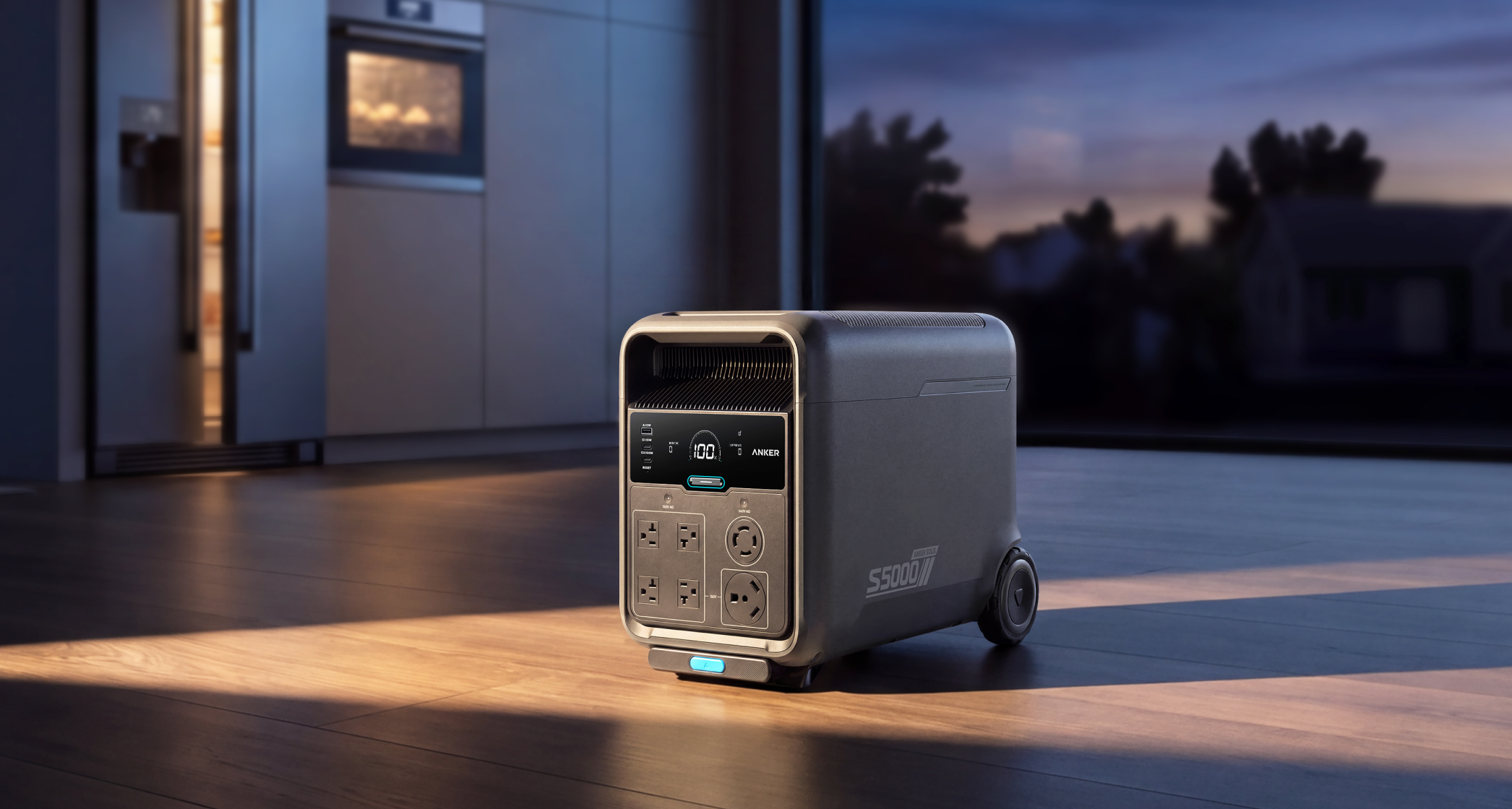

The Anker SOLIX S5000 is a 5,024Wh LiFePO4 power station with 4,500W rated (8,000W peak) 120V/240V output. It recharges at up to 4,500W from 240V AC or up to 3,000W from solar.

Buy — affiliate linkAdd to my wiring diagram

We earn a small commission on purchases through this link. It does not change what you pay and never affects ratings.

Capacity
5024 Wh
Power
4500 W
Surge
8000 W
Output
120 V AC
!

Safety notes for this component

  • Supplying household circuits requires approved connection equipment (transfer switch or inlet box) and professional installation.
  • Keep solar input within the port limits: PV 1 11-60V⎓17A (1,000W max), PV 2 16-165V⎓17A (2,000W max).
  • Charge only between 32°F and 104°F (0°C to 40°C); discharge between -4°F and 104°F (-20°C to 40°C).
  • Ensure adequate ventilation, dry storage conditions and sufficient operating clearance.

Try it with your setup

How long it runs

From 5024 Wh usable of 5024 Wh, one load at a time.

LED lighting15 W12.6 days
Compressor fridge (average draw)45 W4.2 days
Diesel heater, running30 W6.3 days
Water pump65 W2.9 days
Laptop and router75 W2.5 days
Kettle through an inverter1200 W3.8 h
Your load—

Power station: full rated capacity, every load through its inverter or 12 V regulator at about 90 % efficiency. Averages for a running device; a fridge cycles, so real days vary with the weather.

What it runs

Against 4500 W continuous and 8000 W surge, one appliance at a time.

Laptop charger65 WRuns
Starlink dish75 WRuns
230 V compressor fridge100 WRuns
Corded power drill600 WRuns
Hair dryer1200 WRuns
Microwave (input power)1200 WRuns
Pod coffee machine1400 WRuns
Induction hob, one zone2000 WRuns
Kettle2000 WRuns

Start-up draw from the appliance type: compressor fridges pull about 5× their running power, motors 3×, pumps 4×.

Size an inverter for several appliances at once →

Technical data

Capacity5,024Wh
Battery Type314Ah LFP Cells
Cycle Life6,000 cycles to 80% capacity; 10,000 cycles to 60% capacity
AC Output Power4,500W Max (120V/240V)
AC Output Power (Peak)8,000W
Bypass Mode Power4,500W Max
AC OutletsNEMA 5-20R ×4, TT-30R, L14-30R
USB-A Output5V⎓2.4A (12W Max)
USB-C 1 Output5V⎓3A (15W Max)
USB-C 2 Output100W Max
AC Input Power120V: 1,800W Max; 240V: 4,500W Max
DC Generator Input Power4,500W Max
Solar Panel Input 111-60V⎓17A Max (1,000W Max)
Solar Panel Input 216-165V⎓17A Max (2,000W Max)
Idle Power120V output 8.8W; 240V output 13.7W
UPS Switchover Time≤10 ms
Dimensions (W × D × H)10.6 × 22.0 × 15.2 in
Net Weight97 lb
Discharging Temperature-4°F to 104°F / -20°C to 40°C
Charging Temperature32°F to 104°F / 0°C to 40°C
