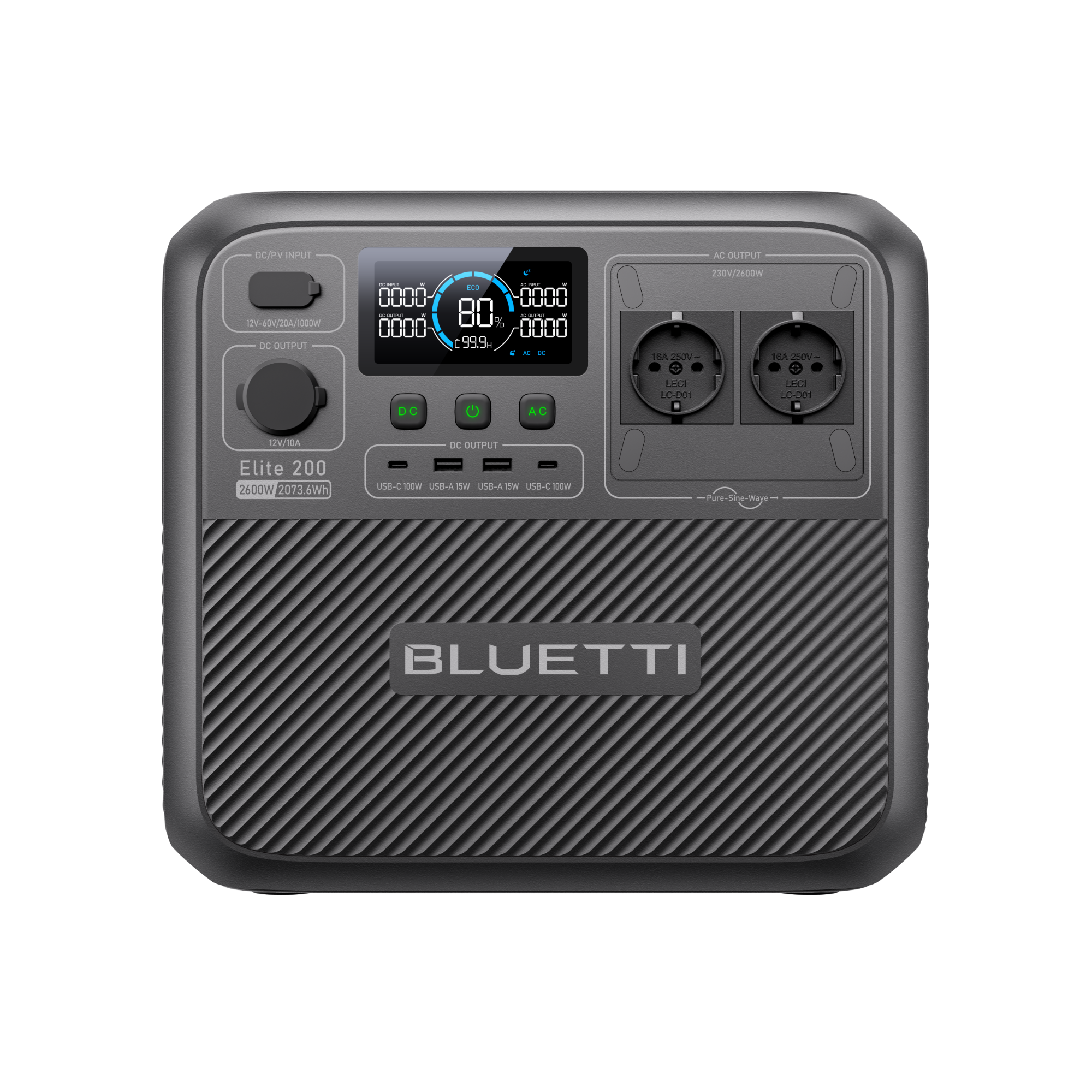

BLUETTI Elite 200 V2
The BLUETTI Elite 200 V2 is a portable power station with a 2073.6Wh LiFePO4 capacity and a 2600W AC output. It can be recharged via AC input up to 2300W or by solar panels up to 1000W.
Buy — affiliate linkAdd to my wiring diagram
We earn a small commission on purchases through this link. It does not change what you pay and never affects ratings.
Power
2600 W
Surge
3900 W
Output
230 V AC
!
Safety notes for this component
- Do not use solar panels with an open-circuit voltage higher than 60V; solar input range is 12V-60V, 20A max (10A max per MC4 input).
- Do not plug the unit's AC charging cable into its own AC outlets.
- Power Lifting mode is only for pure resistive loads rated 2,600W-3,900W; motors or compressors may start at 2-4× their rated power and overload the unit.
- Do not move the product during operation, and do not use it in rain or high-humidity environments.
Technical data
Battery Capacity2,073.6Wh (54Ah)
Battery TypeLiFePO₄ (Lithium Iron Phosphate)
Life Cycles6,000+ cycles to 80% original capacity
Inverter TypePure Sine Wave
AC Outlets2,600W in total, 230V, 11.3A
Surge Power3,900W
DC Outlets1 × 12V/10A (Car Outlet)
USB-C Port2 × 100W Max
USB-A Port2 × 15W, 5V/3A
AC Input2,300W Max
Solar Input1,000W Max, 12V to 60V, 20A Max
Car Input96W (12V) / 192W (24V)
AC + DC Input2,400W Max
UPS Switchover Time≤15 ms
Weight24.2 kg / 53.4 lbs
Dimensions (L×W×H)350 × 250 × 323.6 mm
Charging Temperature0°C to 40°C / 32°F to 104°F
Discharging Temperature-20°C to 40°C / -4°F to 104°F
Warranty5 years
