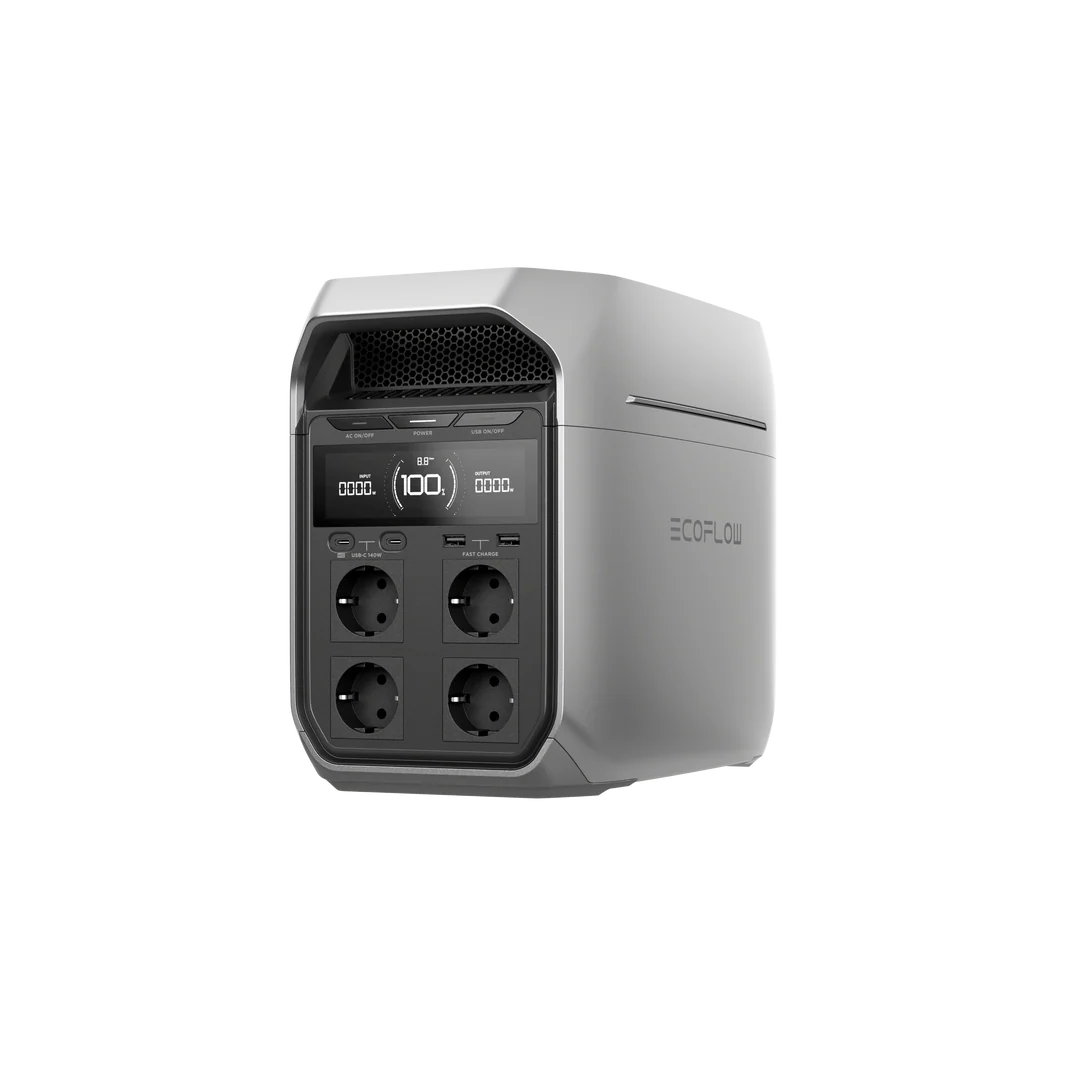

EcoFlow DELTA 3 Plus
The EcoFlow DELTA 3 Plus is a portable power station with a 1024Wh LFP capacity and a 1800W AC output. It can be recharged via AC input up to 1500W or by solar panels up to 1000W.
Buy — affiliate linkAdd to my wiring diagram
We earn a small commission on purchases through this link. It does not change what you pay and never affects ratings.
Power
1800 W
Surge
3600 W
Output
230 V AC
!
Safety notes for this component
- Ensure the total open-circuit voltage (Voc) of the solar panel(s) is within 60V and the total short-circuit current (Isc) is within 15A to avoid product damage.
- This product must be grounded: plug the supplied charging cord only into a properly installed and grounded outlet.
- Do not use the product near a heat source and do not get it wet or immerse it in any liquid.
- Place the product on a stable, flat surface and do not stack heavy objects on it.
Technical data
Capacity1024Wh (51.2V⎓20Ah)
Cell ChemistryLFP (LiFePO₄)
Cycle Life4000 cycles to 80% capacity
AC Output Power4 × outlets, 1800W total (230V)
AC Output Power (Surge)3600W
X-Boost2400W
USB-A Output2 × 36W Max
USB-C Output2 × 140W Max
Car Power Output12.6V, 10A, 126W Max
DC5521 Output2 × 12.6V, 3A Max
AC Input Power (Charging)1500W (0-100% in 56 min); 220-240V~ 10A
Solar Panel Input11-60V⎓15A, 2 × 500W Max (1000W total)
Car Charging800W with Alternator Charger (1.3 h)
Expandable CapacityUp to 5kWh (DELTA 3 / DELTA Pro 3 / DELTA 2 Max / DELTA 2 Extra Battery)
UPS<10 ms
Net Weight≤12.5 kg
Dimensions398 × 200 × 284 mm
Charging Temperature0°C to 45°C / 32°F to 113°F
Discharging Temperature-10°C to 45°C / 14°F to 113°F
