Jackery Explorer 1000 v2

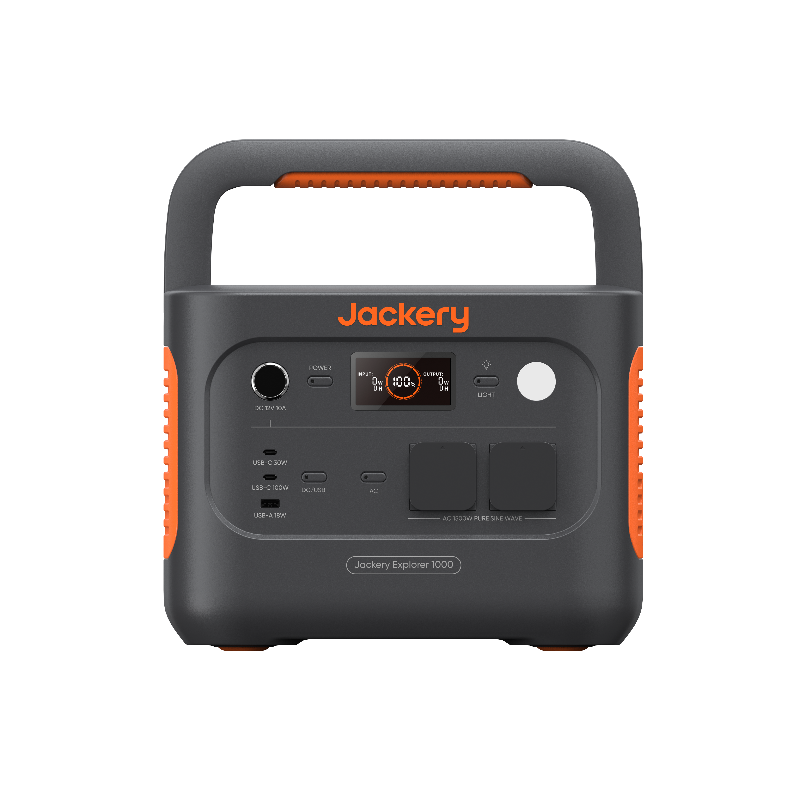

The Jackery Explorer 1000 v2 is a portable power station with a 1070Wh LiFePO4 capacity and a 1500W AC output. It can be recharged from a wall outlet, by car charger, or by solar panels up to 400W.
Buy — affiliate linkAdd to my wiring diagram
We earn a small commission on purchases through this link. It does not change what you pay and never affects ratings.
Power
1500 W
Surge
3000 W
Output
230 V AC
!
Safety notes for this component
- When connecting solar panels to both DC8020 input ports, use the same model and number of Jackery solar panels; mixing can cause voltage inconsistencies and damage the power station.
- Start the vehicle before charging via the car charger, and do not car-charge while driving on bumpy roads (risk of burning from a poor connection).
- Charge the product in a well-ventilated area and do not restrict ventilation in any way.
- Do not expose the product to fire or high temperature, such as direct sunlight or a vehicle under high heat.
Technical data
Model No.JE-1000D
Capacity30.4Ah/35.2V DC (1070Wh)
Cell ChemistryLiFePO4
Cycle Life4000 cycles to 70%+ capacity
AC Output2 × 230V~ 50Hz
AC Total Output1500W Rated, 3000W Surge Peak
USB-C1 Output30W Max
USB-C2 Output100W Max
USB-A Output18W Max
Car Port12V⎓10A
AC Input220V-240V~ 50Hz, 10A Max
DC Input2 × DC8020: 12-16V⎓8A Max; 16-60V⎓10.5A Max, double to 21A / 400W Max
UPS / EPS Switchover≤20 ms
WeightAbout 10.8 kg / 23.8 lbs
Dimensions32.7 × 22.4 × 24.7 cm
Charge Temperature0°C to 45°C / 32°F to 113°F
Discharge Temperature-10°C to 45°C / 14°F to 113°F
